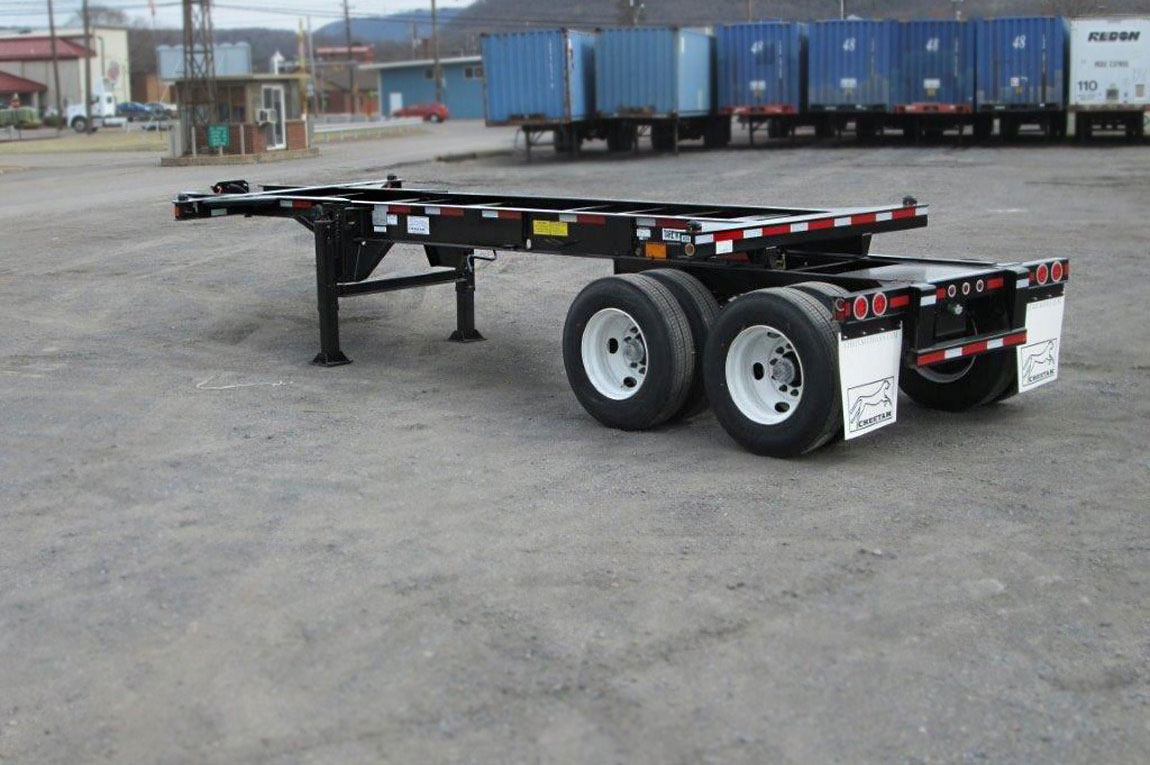

23’ SLIDER CHASSIS

TARE WEIGHT :  6600lbs

LANDING GEAR :  JOST sets with 10″ x 10″ low profile sand shoes

SUSPENSION :  HUTCH 9700 series spring suspension

TIRES :  OEM Radial 11R22.5

LIGHTING :  Single Diode LED

All Hercules Chassis can be built to customer requests, including:

  • PSI Tire Inflation System
  • Air Ride
  • Lift Axles
  • Choice of Color
  • Anti-Theft Options

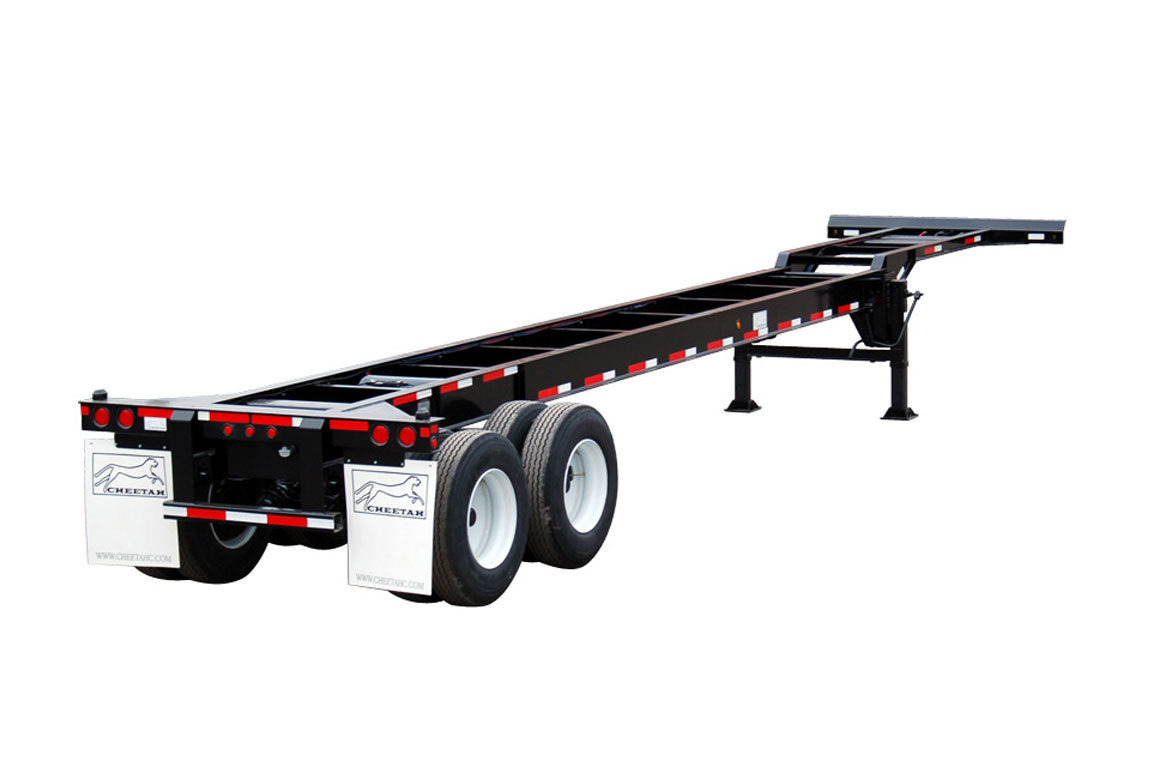

40’ TANDEM GOOSENECK CONTAINER CHASSIS
Carries one 40 ft. ISO Container applicable to operation in the United States.

Tare Weight: Approximately 6,400 lbs
GVWR: 65,000 lbs

20 - 40’ 12-PIN CONTAINER CHASSIS
Carries one 20 ft (54,000 lb) or one 40 ft or two empty 20 ft ISO containers applicable to operation in the United States.

Tare Weight: Approximately 10,600 lbs. ± 3%
GVWR: 40 ft. position 83,000 lbs., 20 ft. position 76,000 lbs.

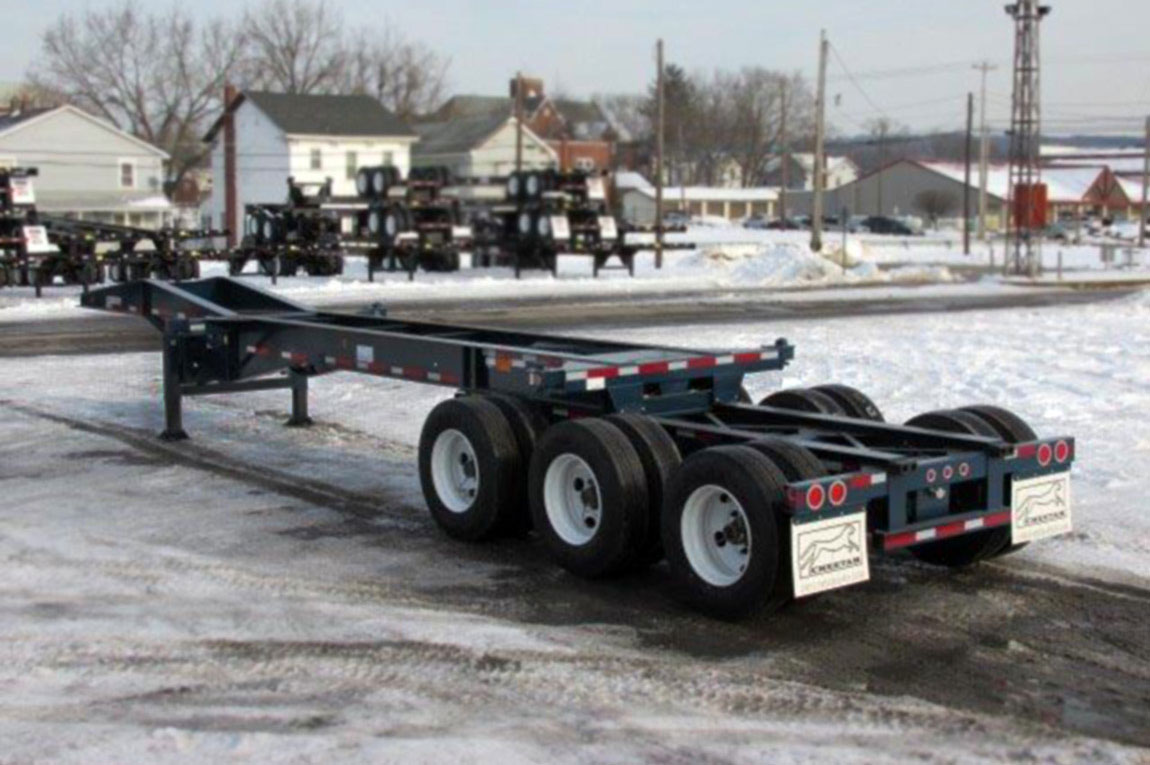

40 - 45 EXTENDABLE GOOSENECK CONTAINER CHASSIS
Carries one 40 ft. ISO Container or one 45 ft. ISO Container applicable to operation in the United States.

Tare Weight: Approximately 6,800 lbs.
GVWR: 65,000 lbs.

40’ TRIDEM GOOSENECK CONTAINER CHASSIS
Carries one 40 ft. ISO Container applicable to operation in the United States

Tare Weight: Approximately 8,500 lbs.
GVWR: 75,000 lbs.
